| AC voltage |
100/110/120/220/230/240AC |
| Rated power. |
1500W |
| Surge power |
3000W |
| Waveform |
Pure Sine Wave |
| Frequency |
50/60Hz ±3% |
| DC voltage |
12V |
| Voltage range |
10~20DC |
| Efficiency |
>90.0% |
| Low voltage alarm |
11±0.5VDC |
| Low voltage shut down |
10±0.5VDC |
| Overload |
Shutdown |
| Over voltage |
14.8±0.5VDC |
| Over temperature |
Shut-off output voltage, recover automatically after temperature goes down |
| Short circuit |
Shut-off output voltage, restart to recover |
| Reverse polarity |
Fuse burnt |
| Reset voltage after LVS |
11.8~12.8VDC |
| Working Temp |
0~40°C |
| Remote control |
Switch with 5m wire (optional) |
| Colling fan |
Controlled by load/temperature |
OPTIONAL JACK

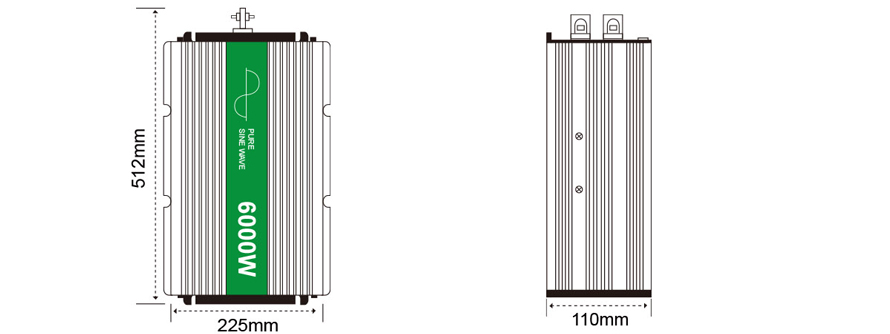

Dimensions
Protection Function
LOW VOLTAGE ALARM:
When battery voltage reaches 11V±0.5V,the buzzer beeps intermittently and the LED red light on.
LOW VOLTAGE SHUT DOWN:
When battery voltage reaches 10.5V±0.5V,the buzzer beeps rapidly and the LED red light on,AC output be shut down.
OVER VOLTAGE SHUT DOWN:
When battery voltage reaches 14.8V±0.5V,the buzzer beeps rapidly and the LED red light on,AC output be shut down.
OVER LOAD SHUT DOWN:
When the loads connected is higher than the rated power of the inverter, the buzzer beeps rapidly and the LED red light on,AC output be shut down.
OVER TEMPERATURE SHUT DOWN:
When shell’s temperature reaches 40ºC ,the buzzer beeps rapidly and the LED red light on,AC output be shut down.
SHORT CIRCUIT SHUT DOWN:
When short circuit happens, the buzzer beeps rapidly and the LED red light on,AC output be shut down.
REVERSE POLARITY:
When the positive and negative cable between the battery and the inverter connected in reverse,the fuse burnt out and the inverter will not work
