• Pure sine ware output
• Optional MPPT/PWM solar charge controller 60A
• MPPT Efficlency max 98%
• DC Start & Automatic Self-Diagnostic Function
• High Efficiency Design & "Power Saving Mode” to Conserve Energy
• Auto restart when Ac is recovering
• Smart battery charger design for optimized battery performance
• Selectable charging current based on applications

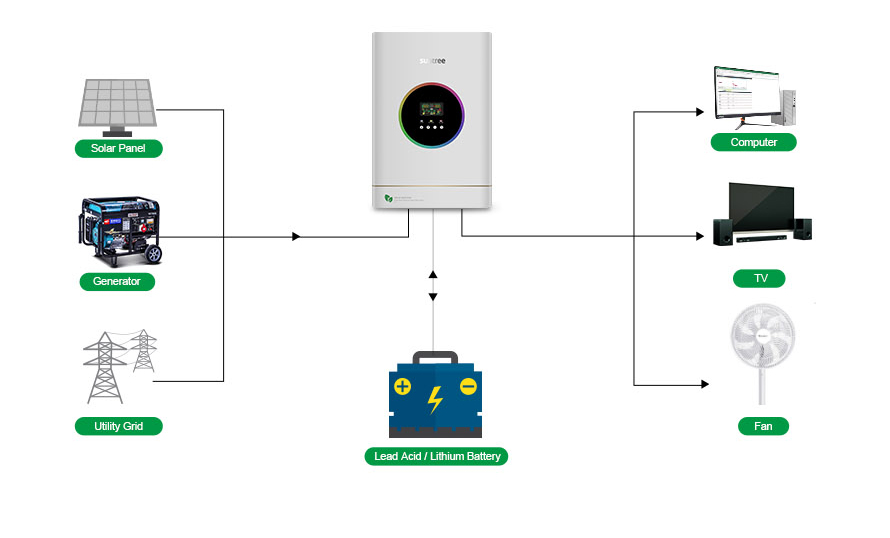

• AC input/DC input/Solar input optional priority
• Auto Restart Voltage
| ELECTRICAL TECHNICAL REFERENCE | ||||||||||
| Capacity(VA) | VC1000 | VC1500 | VC2000 | VC3000 | VC4000 | VC5000 | VC6000 | VC7000 | VC8000 | VC10000 |
| Rated Power | 800W | 1200W | 1600W | 2400W | 3200W | 4000W | 5000W | 5600W | 6400W | 8000W |
| Voltage(DC) | 12V | 24V/48V | 24V/48V | |||||||
| Nominal Voltage | 220VAC | |||||||||
| Voltage Range | 154-265VAC; 185-264VAC (selectable) | |||||||||
| Frequency | 50-60HZ Auto sensing | |||||||||
| Power Factor | 0.8 | |||||||||
| Voltage | 220VAC | |||||||||
| Frequency | 50/60Hz | |||||||||
| Waveform | Pure Sine Wave | |||||||||
| Transfer Time (AC to DC) | <8ms | |||||||||
| Transfer Time (DC to AC) | <8ms | |||||||||
| Output Voltage Regulation | ±10% | |||||||||
| Bypass Mode | Yes | |||||||||
| Saver Mode | Yes | |||||||||
| Efficiency | >98% | |||||||||
| lnput Protection | Circuit Breaker | |||||||||
| Output Protection | Circuit Breaker | |||||||||
| Battery Type | VRLA / GEL / GEL DEEP CYCLE | |||||||||
| Charging Current | 20A | 30A | 20A/10A | 30A/15A | 40A/20A | 55A/28A | 30A | 40A | 45A | 55A |
| Low Level disconnect (Selectable) | 10V-11V | 20V-22V / 40V-44V | 40V-42V | |||||||
| PWM controller Voltage range | 15VDC-33VDC | 30VDC-66VDC | 60VDC-150VDC | |||||||
| PWM Maximum PV display open circuit voltage | 38V | 75V | 75V | |||||||
| Maximum PV array power | 720W | 1400W/2800W | 3400W | |||||||
| MPPT control voltage range | 18V-150V | 34V-150V / 68V-150V | 60V-150V | |||||||
| MPPT Maximum PV display open circuit voltage | 150VDC | |||||||||
| Maximum solar charge current | 60A | |||||||||
| LCD indicator status | AC input voltage/input frequency, PV voltage, PV current, Output Voltage/Frequency, Battery voltage, Load current etc. |
|||||||||
| LED indicator status | AC Line In: Green / Inverter: Red / Charging: Yellow / Alarm :Red | |||||||||
| LOW battery alarm | Audible alarm-5 seconds beeping | |||||||||
| Overload alarm | Audible alarm- continuous beeping | |||||||||
| Fault | Audible alarm- continuous beeping | |||||||||
| Temperature | 0-60℃ | |||||||||
| Humidity | -10℃~90℃ Non condensing | |||||||||
| Accoustic Noise(db) | >55dB | |||||||||
