EV Spare Parts New Energy Electric Vehicle High Voltage Fuse DC750--12-60

• Standard: IS0 8820-1, IS0 8820-8, JASO D622

• Rated voltage: DC750V

• Rated current: 12A, 16A, 20A, 25A, 30A, 40A, 50A, 60A

• Breaking capacity: 5kA

• Protection object: Provide safer and more reliable protection against overload and short-circuit current faults of electric vehicle lithium battery pack, Super-capacitor circuit , charging circuit, DC-DC converter and other devices.

• Applicable environment: Temperature from -35℃ to 85℃, humidity ≤90%.

• Material description: 95 alumina high strength ceramics and imported material fuse piece.

• Structure process: copper metal is riveted after welding process; The internal quartz sand is processed by solidification to prevent products from falling off in dynamic working conditions and prevent arc spraying which is caused by line faults.

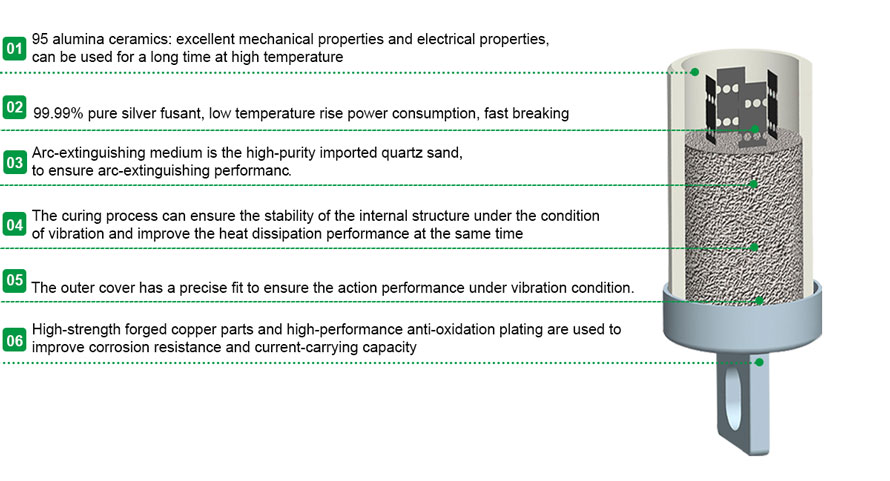

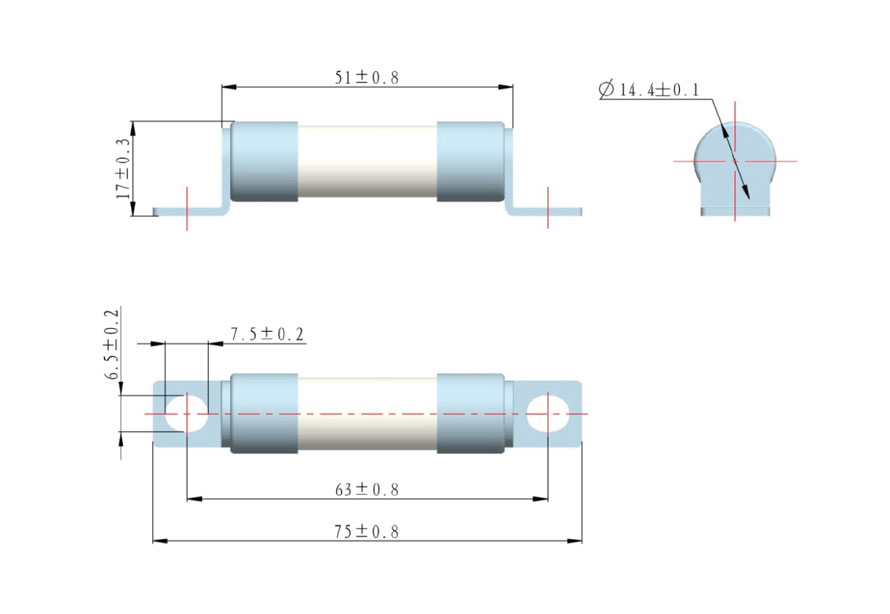

STRUCTURAL DIAGRAM

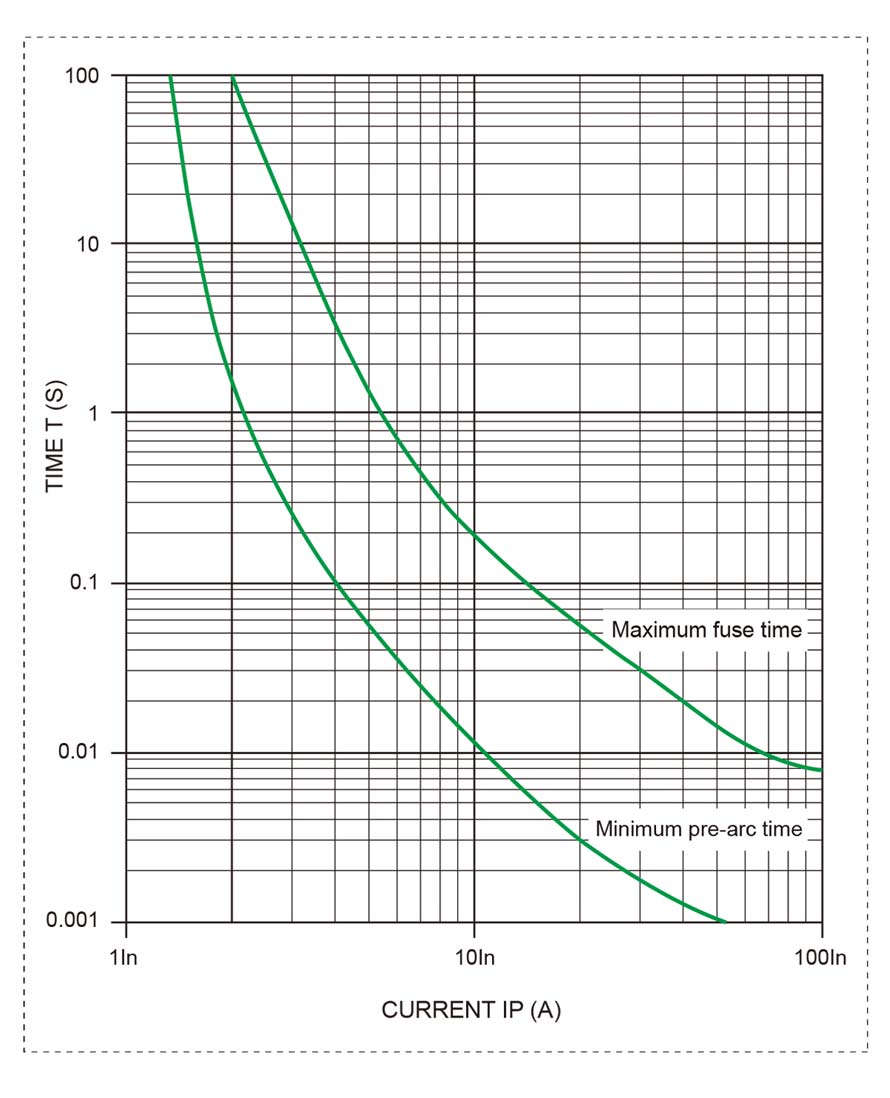

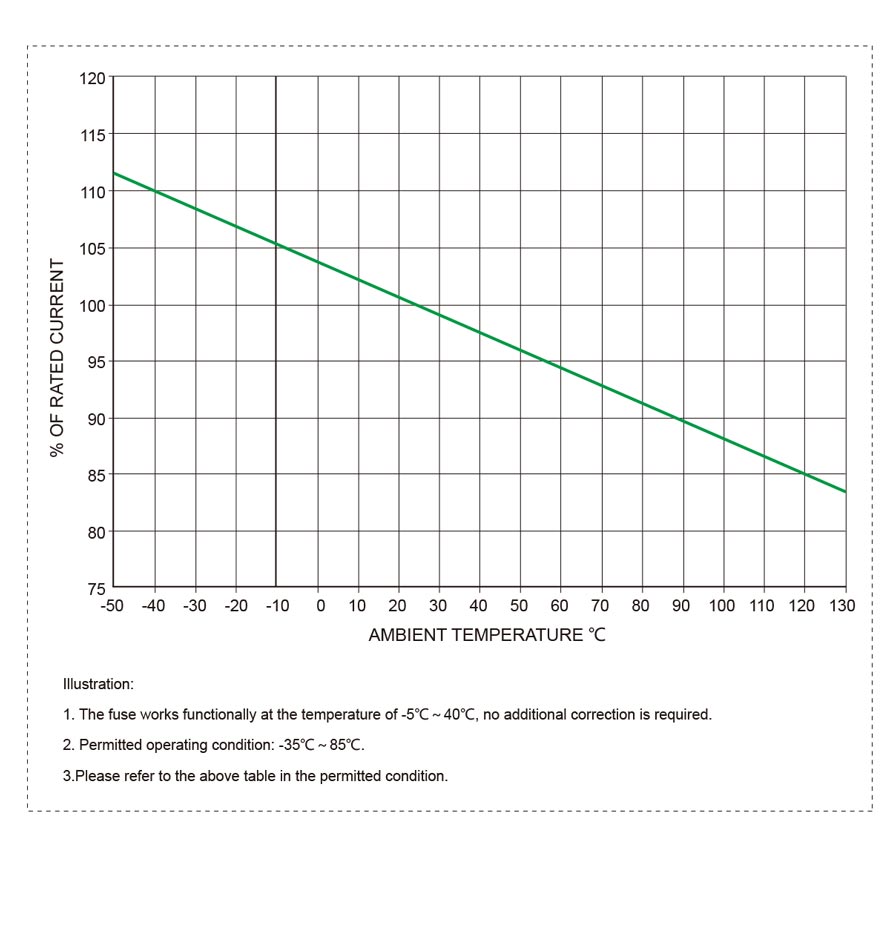

ELECTRICAL TECHNICAL REFERENCE

Product model	Rated current (A)	I²t (A²s)		Breaking capacity	Power consumption (w) 0.5In	Mounting bolts/torque
Product model	Rated current (A)	Pre-arc	Fusing	Breaking capacity	Power consumption (w) 0.5In	Mounting bolts/torque
SEV14B750 - 12A	12	412	517	5kA time constant (L/R): 2ms ± 0.5ms	0.54	Mounting bolt M6, recommended mounting torque 6N*m
SEV14B750 - 16A	16	536	735		0.71
SEV14B750 - 20A	20	821	1594		0.84
SEV14B750 - 25A	25	1014	1893		1.06
SEV14B750 - 30A	30	1253	2347		1.39
SEV14B750 - 40A	40	1890	3743		1.73
SEV14B750 - 50A	50	2951	5384		1.96
SEV14B750 - 60A	60	3846	7543		2.30
