EV Spare Parts New Energy Electric Vehicle High Voltage Fuse DC500B--20-150

• Standard: IS0 8820-1, IS0 8820-8, JASO D622

• Rated voltage: DC500V

• Rated current: 10A, 12A, 16A, 20A, 25A, 30A, 35A, 40A, 50A

• Breaking capacity: 20kA

• Protection object: Provide safer and more reliable protection against overload and short-circuit current faults of electric vehicle lithium battery pack, Super-capacitor circuit , charging circuit, DC-DC converter and other devices.

• Applicable environment: Temperature from -35℃ to 85℃, humidity ≤90%.

• Material description: 95 alumina high strength ceramics and imported material fuse piece.

• Structure process: copper metal is riveted after welding process; The internal quartz sand is processed by solidification to prevent products from falling off in dynamic working conditions and prevent arc spraying which is caused by line faults.

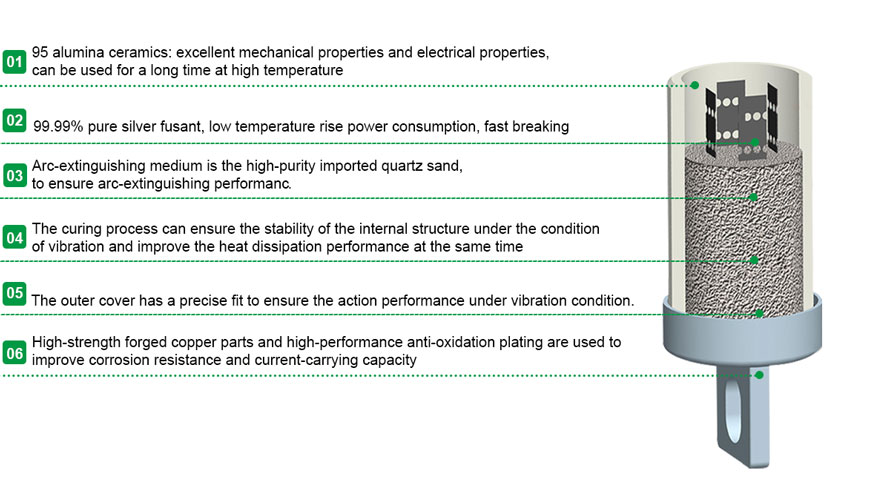

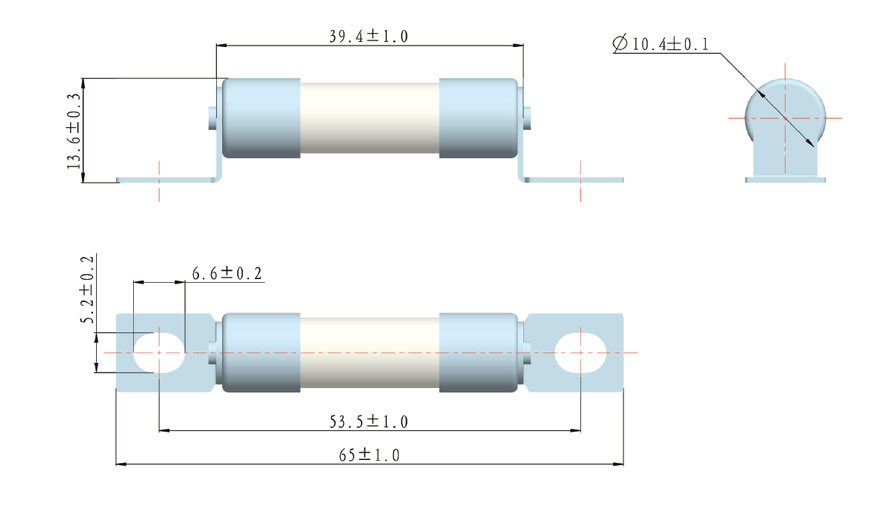

STRUCTURAL DIAGRAM

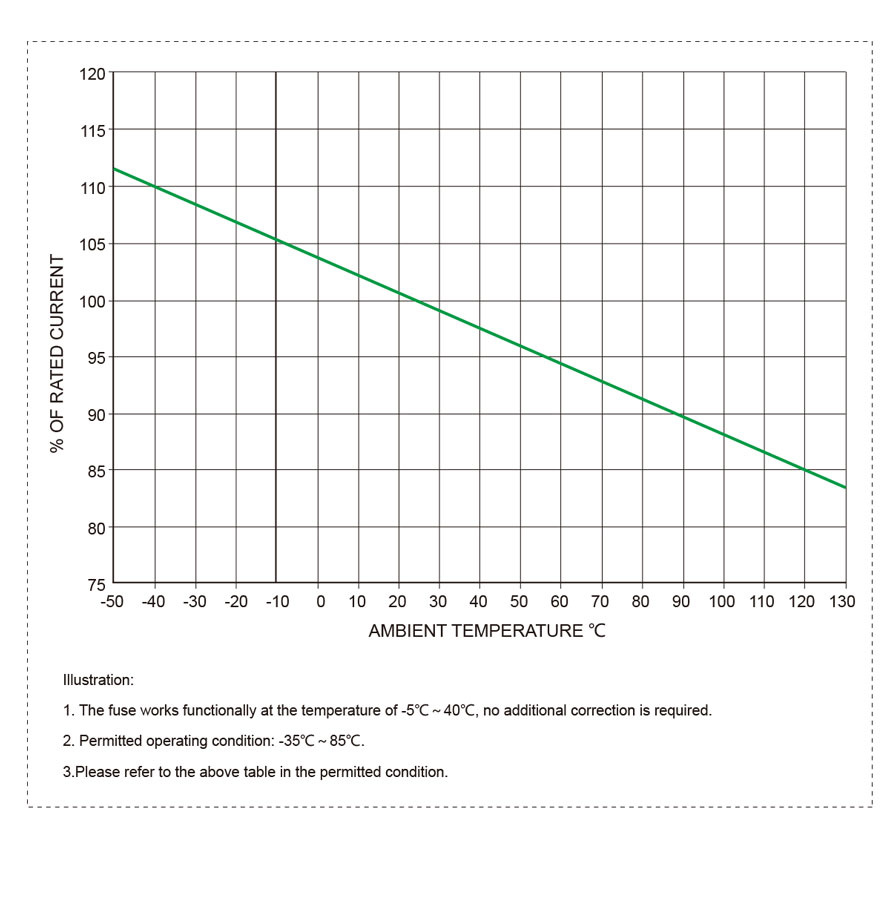

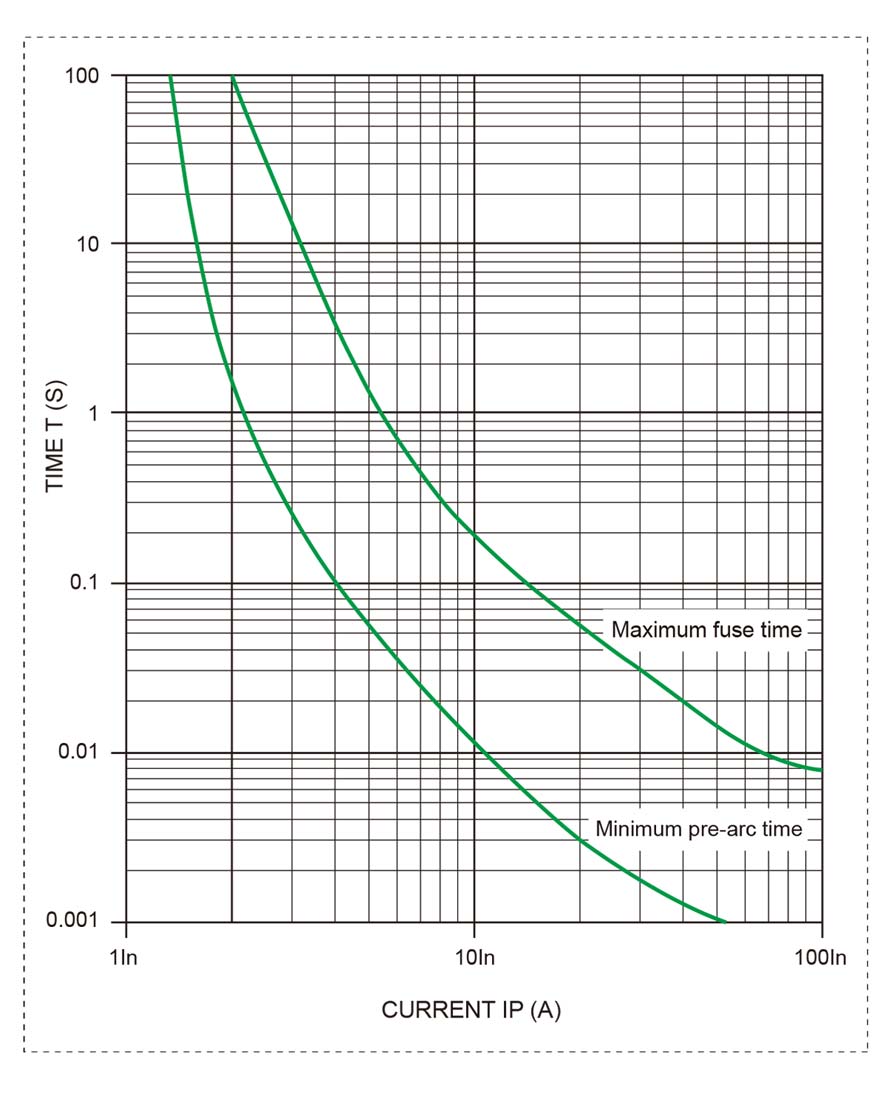

ELECTRICAL TECHNICAL REFERENCE

Product model	Rated current (A)	I²t (A²s)		Breaking capacity	Power consumption (w) 0.5In	Mounting bolts/torque
Product model	Rated current (A)	Pre-arc	Fusing	Breaking capacity	Power consumption (w) 0.5In	Mounting bolts/torque
SEV10B500- 10A	10	350	420	5kA time constant (L/R): 2ms ± 0.5ms	0.60	Mounting bolt M5, recommended mounting torque 4.5N*m
SEV10B500- 12A	12	430	650		0.65
SEV10B500- 16A	16	670	1280		0.75
SEV10B500 - 20A	20	800	1520		0.80
SEV10B500 - 25A	25	960	1820		1.00
SEV10B500 - 30A	30	1200	2100		1.20
SEV10B500 - 35A	35	1350	2600		1.50
SEV10B500 - 40A	40	1645	3250		2.10
SEV10B500 - 50A	50	2560	4896		3.20
