Mini EV Charger 32A/7KW Indicator European Standard Type 2 CE Certificate

• With swipe card start and remote stop start, with rechargeable IC card.

• Appointment charging function, can be charged according to the user's demand, full automatic end.

• History record function can query historical charging records and expense records

• Equipped with display screen to display SOC information in real time and estimate full time.

• With overload protection, over voltage protection, under voltage protection, short.
circuit protection, over temperature protection, emergency stop and other functions.

• Convenient charging, plug and play.

ELECTRICAL TECHNICAL REFERENCE

DETAILED SPECIFICATIONS
Product model	Single phase electric AC charging pile (EU VERSION)
STRUCTURE APPEARANCE
Gun head	European standard TYPE 2

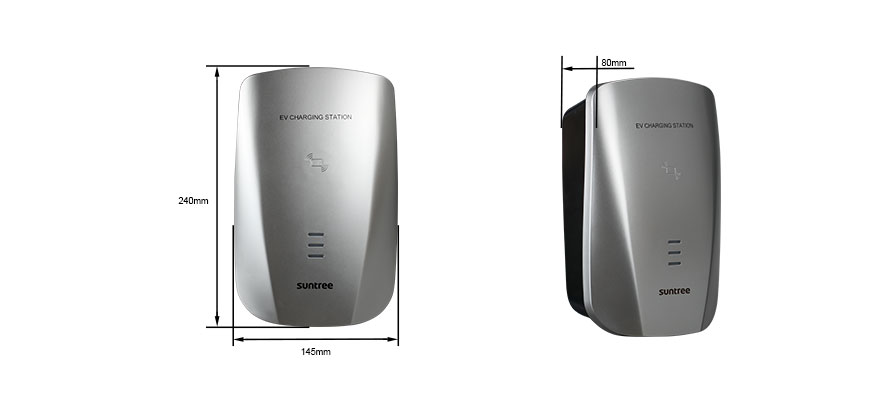

Equipment size	240mm 145mm 80mm (L WT)

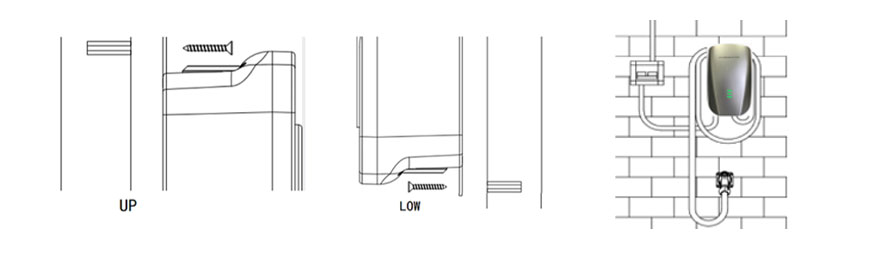

Installation method	Column mounted (floor mounted) or wall mounted Install optional
ELECTRICAL INDICATORS
Working volatage	AC 240 V( L1+N+PE )
Frequency	50/60Hz
Rated power	7KW
Output current	0-32A
FEATURE DESIGN
Start mode	Plug & play
Display information	2.8 in LCD large screen, real-time dynamic display, exquisite high-end
SAFETY DESIGN
Executive standard	IEC 62196 (type 2)
Display function	Display parameters Charge voltage, charge current, charge quantity, SOC, fault code
USE ENVIRONMENT
Working temperature	5-95% RH
Working humidity	-30℃~50℃
The cooling way	Natural air cooling
