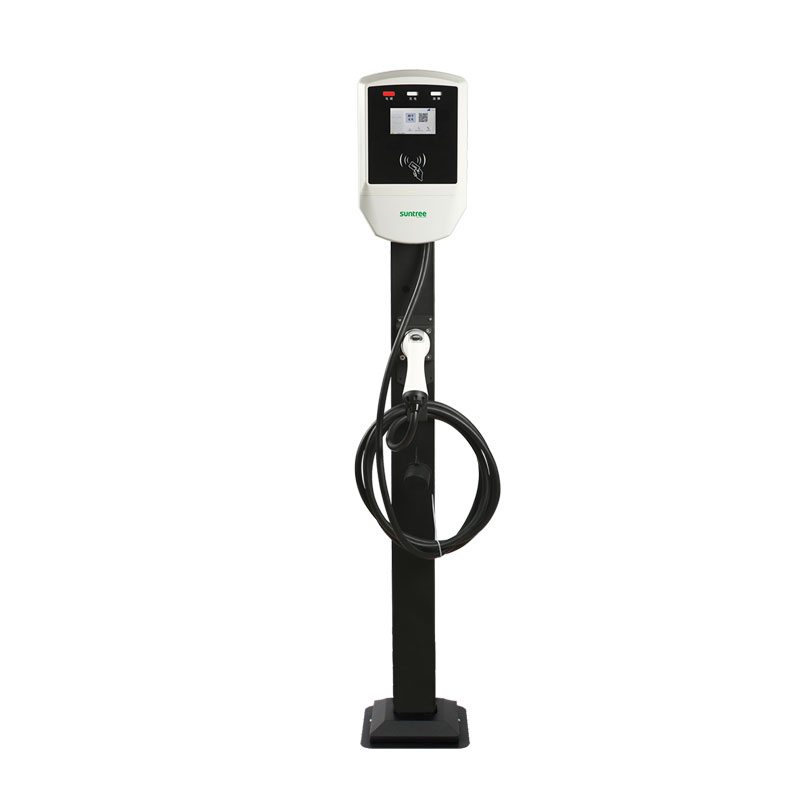

Home EV Charger
• Stop When Full
• Multiple protection
• Waterproof grade IP54
• Output power up to 7KW
• Swipe card, scan code
• The shell is made of ABS insulation and flame retardant
ELECTRICAL TECHNICAL REFERENCE
| DETAILED SPECIFICATIONS | |
| Product model | SCAC-7000 |
| STRUCTURE APPEARANCE | |
| Product properties | Operation version 7KW |
| Equipment size | 390mm*240mm*95mm(L*W*T) |
| Installation method | Floor opening installation |
| Route | Down in down out |
| Cable length | 5M |
| ELECTRICAL INDICATORS | |
| Input voltage | 220V±20% |
| Input frequency | 50±3HZ |
| Rated power | 7KW |
| Output current | 32A |
| FEATURE DESIGN | |
| HMI | Swipe card, scan code, emergency stop button, LED indicator |
| Communication Interface | Support 4G/3G/2G, Ethernet (ad hoc network) |
| SAFETY DESIGN | |
| Safety standards | GB/T18487-2015 |
| protection design | Surge, overcurrent, overvoltage, leakage, undervoltage, short circuit protection |
| ENVIRONMENTAL INDICATORS | |
| Use environment | Indoor/Outdoor |
| Operating temperature | -20℃~50℃ |
| Protection class | IP54 |

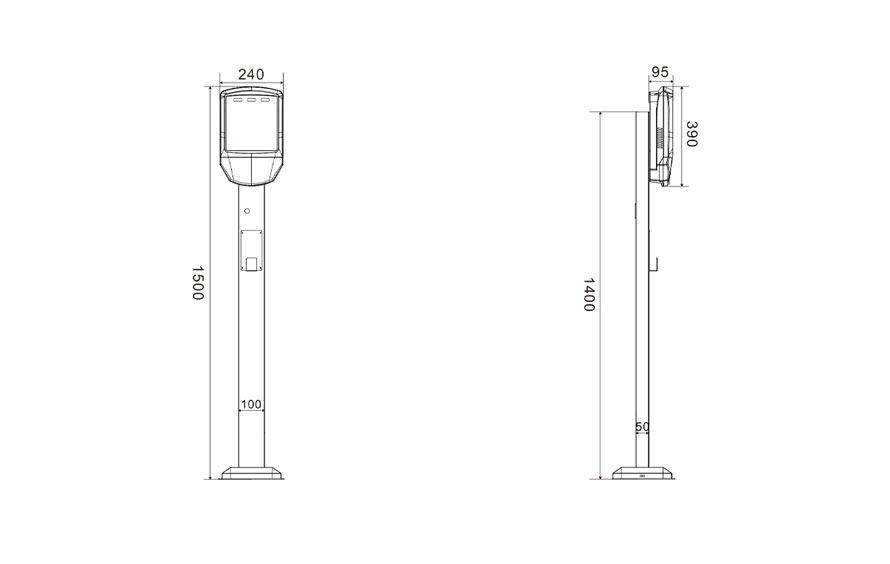

DIMENSIONS
